Silo Vent Filter

Name: Silo Vent Filter
Brand: ROHAN ENGINEERING ENTERPRISE
Price: 200000 INR
Availability: InStock

Price 200000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Silo Vent Filter Specification

Measurement
Particle Filtration

Air Flow
1000-50000 m3/hr

Scrubber Type
Dry Dust Collector (Bag Filter Type)

Power Source
Electric

Efficiency
99.9% Filtration

Instruments Type
Industrial Filtration Equipment

Usage & Applications
Dust control in silos/filling systems

Automation Grade
Semi Automatic

Sensor Type
Pressure Differential Sensor

Orientation
Vertical Mount

Temperature
Upto 80C

Product Type
Silo Vent Filter

Material
Mild Steel

Cooling System
Natural Air Cooled

Noise Level
Low (<70 dB)

Processing Time
Continuous Operation

Capacity
1000-50000 m3/hr

Voltage
230 V

Weight
Approx. 300-1200 kg (depending on model)

Dimension (L*W*H)
Custom as per silo size

Surface
Powder Coated

Pulse Jet Cleaning System
Yes, included for automatic bag cleaning

Color
Industrial Grey or as per order

Filter Media
Non-woven polyester or PTFE coated filter bags

Dust Discharge System
Manual/Automatic Rotary Valve

Control Panel
Available (optionally integrated)

Installation Type
Top mounted on silo

No. of Filter Bags
Variable (as per capacity)

Max Differential Pressure
<1500 Pa

Service Life
Long service life with regular maintenance

Protection Grade
IP55 electrical components

Air to Cloth Ratio
5:1 to 8:1

Silo Vent Filter Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
15 Days

Main Domestic Market
All India

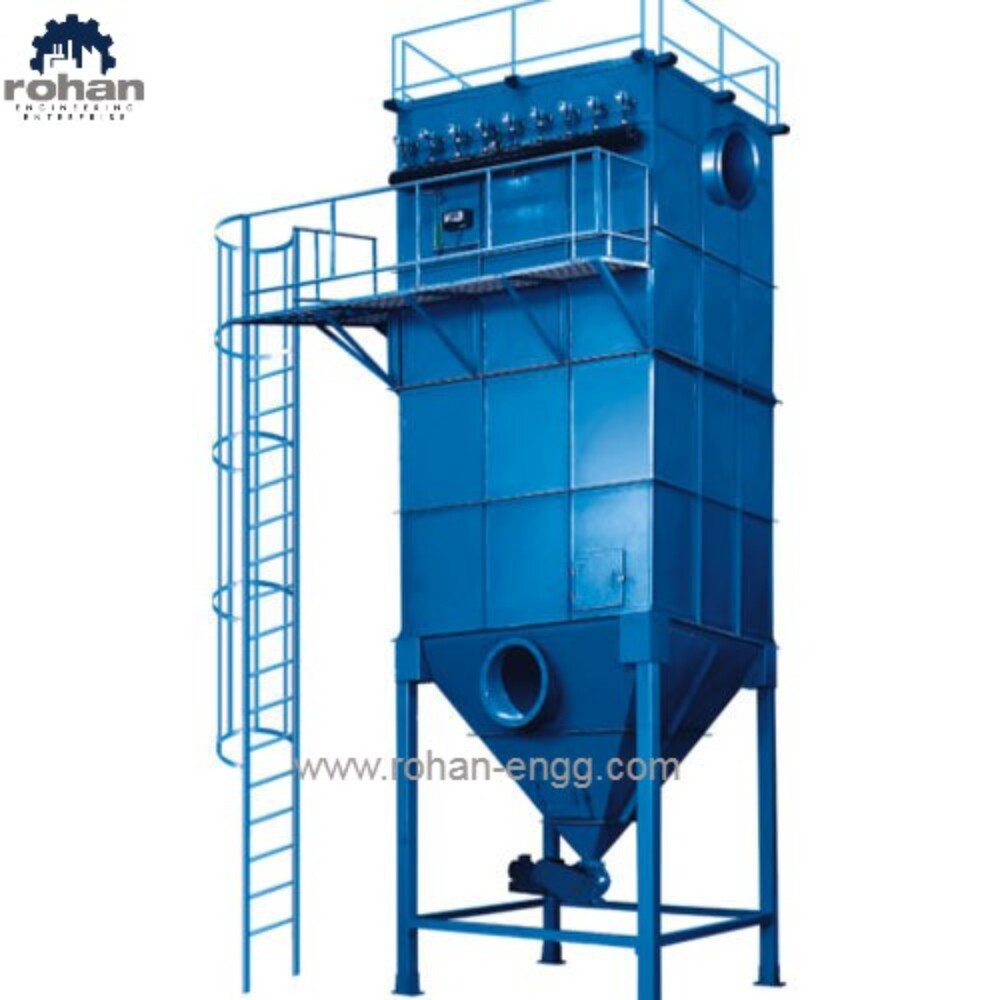

About Silo Vent Filter

A Vent Air Filter is beneficial in getting rid of airborne particles and pollutants. It helps combating exposure to airborne elements such as respiratory illnesses, skin conditions and others.

Superior Filtration Efficiency

Delivering 99.9% particle removal, the Silo Vent Filter is engineered to protect your environment and processes from hazardous dust emissions. The bag filter type design, along with an automatic pulse jet cleaning system, ensures the filter media remains unclogged for consistent performance. These features make it highly suitable for large-scale industrial silo applications requiring clean air discharge.

Robust Construction for Industrial Use

Manufactured from mild steel and finished with a powder-coated surface, this filter system promises excellent durability and corrosion resistance. The IP55 protection grade of electrical components and natural air cooling support reliable year-round operation, even in demanding industrial conditions. Custom dimensions allow seamless integration with any silo size or filling setup.

Flexible Control & Automation

Available with an integrated control panel and options for semi-automatic operations, the Silo Vent Filter offers flexible automation to suit diverse process requirements. Differential pressure sensors monitor filter performance, while manual or automatic rotary valves simplify dust discharge-helping operators manage air quality without compromising efficiency.

FAQ's of Silo Vent Filter:

Q: How does the Silo Vent Filter maintain high filtration efficiency during continuous operation?

A: The Silo Vent Filter uses high-quality non-woven polyester or PTFE-coated filter bags combined with an integrated pulse jet cleaning system. This setup automatically removes accumulated dust from the filter bags, ensuring optimal air-to-cloth ratio and maintaining filtration efficiency at 99.9%, even during continuous industrial processes.

Q: What is the installation process for the Silo Vent Filter, and where is it typically mounted?

A: This filter is designed for top-mounted installation on industrial silos. Its customizable dimensions allow it to fit various silo sizes. Typically, it is installed vertically at the top of a silo to efficiently capture dust during material handling or filling operations.

Q: When should the filter media or other maintenance tasks be carried out?

A: Routine maintenance includes inspecting the filter bags and cleaning system at regular intervals, as recommended in the user manual. The pulse jet cleaning system automatically maintains bag cleanliness, but periodic checks are advised to maximize service life and performance.

Q: What benefits do industrial operations gain by using this Silo Vent Filter?

A: Utilizing this filter system helps reduce dust emissions, enhances workplace safety, and ensures compliance with environmental regulations. Its robust design, effective cleaning system, and high filtration capacity support continuous operations and longer equipment service life.

Q: How is dust discharged from the Silo Vent Filter, and what options are available?

A: Dust collected during filtration is discharged through a rotary valve, which can be operated manually or automatically. This allows for convenient, clog-free removal of dust and supports uninterrupted filtration.

Q: Where can the Silo Vent Filter be used, and in what applications is it most effective?

A: The Silo Vent Filter is ideal for use in industrial environments such as cement, food, chemical, and bulk material handling facilities. It excels at controlling dust in silos, filling systems, and any process needing high-capacity, continuous air filtration.
