Cross Belt Sampler

About Cross Belt Sampler

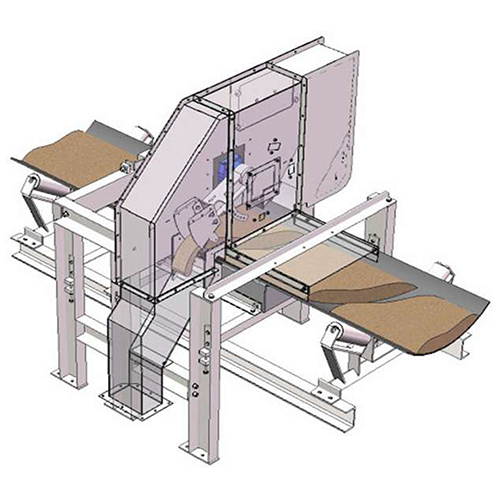

The Cross Belt Sampler obtains a representative sample of granular material directly from a moving trough belt type conveyor. The unit has a single direction motion which sweeps the belt clean and discharges the material into a fixed type collection chute positioned at the side of the trough belt conveyor. The Cross Belt Sampler comprises a sample cutter attached to a drive shaft carried in bearings which are mounted on a channel section base frame. This is positioned directly above the trough belt conveyor. The base frame is usually fixed onto a support structure anchored at the local floor level or to the conveyor stringers.
