Panel Air Filter

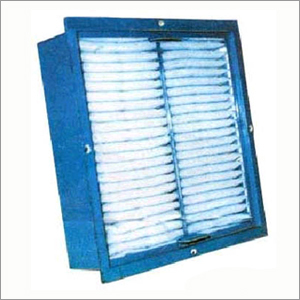

Name: Panel Air Filter
Brand: ROHAN ENGINEERING ENTERPRISE
Price: 4000 USD
Availability: InStock

Price 4000 USD ($)/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Panel Air Filter Specification

Flow Rate
900-3000 m3/h (Depending on size)

Pressure
Initial pressure drop: 20-35 Pa

Filtration Grade
Medium

Temperature Range
up to 80C

Filter Type
Panel Air Filter

Connecting Type
Flange type mounting

Efficiency (%)
70-90%

Cleaning Method
Washable/Replaceable

Capacity
As per requirement

Media Type
Synthetic Non-woven

Condition
New

Material
GI Sheet Frame, Synthetic Filter Media

Mesh
Expanded metal/Aluminium Mesh backing

Diameter
Custom/As per requirement

Construction
Panel type with supporting wire mesh

Medium Filter
Synthetic fiber media

Weight
Lightweight (Varies with dimension)

Shape
Rectangular

Feature
High dust holding capacity, Washable, Easy to install

Service Life
2-6 months depending on usage

Edge Type
Seamed/Sealed edges

Customization
Available as per client specification

Reusability
Yes

Frame Thickness
20 mm to 100 mm

Packaging
Corrugated carton or custom packing

Color
Silver/White/Custom

Application
HVAC, Ventilation systems, Paint booths, Cleanrooms

Maximum Humidity
80% RH non-condensing

Panel Air Filter Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
300 Pieces Per Month

Delivery Time
3 Week

About Panel Air Filter

In order to cater to the variegated requirements of our valued patrons, we have been able to manufacture, export and supply Panel Air Filter. This filter is manufactured in accordance with requirements stated by our valued patrons. These filters are manufactured so as to provide dust collection and diverse air filtration applications in various industries. After manufacturing, our quality controllers perform various tests on these products so as to ensure that only best quality reaches clients' ends. Panel Air Filter is reckoned for following quality attributes:

Accurate operations
Easy to fit
Longer service life
Minimal maintenance required

Other Details:

These are designed to perfection and have spun bonded media in different pleated depths and height to accommodated desired filtration area.

Product details

Construction	Cartridge Filter
Rated Flow(m3/hr)	500
Medium Material	Synthetic Fiber

Advanced Filtration for Clean Air

Equipped with high dust holding capacity, our panel air filters effectively trap airborne particles in HVAC systems, paint booths, and cleanrooms. The combination of synthetic non-woven media and wire mesh support ensures stable performance and prolonged service life across various industries. Their medium filtration grade provides a balance between efficiency and airflow while remaining easy to install and maintain.

Custom-Built to Match Your Needs

We understand that different environments call for specific solutions. That's why our filters can be tailored in size, diameter, edge type, and color to meet any specification. Whether you're upgrading an existing system or installing a new one, our team is ready to deliver custom options to fit your technical and operational requirements.

FAQ's of Panel Air Filter:

Q: How is the panel air filter installed in HVAC and ventilation systems?

A: The panel air filter is easily installed into standard filter housings by securing its flange-type mounting. It can be placed directly into HVAC, ventilation, or cleanroom filter slots, with seamed or sealed edges to ensure a snug fit and minimize bypass air.

Q: What is the recommended cleaning process for a washable panel air filter?

A: To clean, remove the filter and gently rinse it with water or use low-pressure air to dislodge collected dust. Allow the filter to dry completely before reinstalling. Regular cleaning helps maintain optimal performance and extends the filter's service life.

Q: When should the panel air filter be replaced or maintained?

A: Depending on dust load and operating conditions, it is advised to inspect and clean the filter regularly, aiming for maintenance every 2-6 months. Replace the filter if the synthetic media shows wear or if the pressure drop becomes excessive, indicating reduced efficiency.

Q: Where can these panel air filters be used most effectively?

A: These filters are ideal for HVAC systems, ventilation units, paint booths, and cleanrooms-environments that demand medium-grade air filtration for controlling particulates and maintaining air quality.

Q: What are the benefits of choosing a customizable panel air filter?

A: Customizable filters ensure compatibility with varying system designs, specific air quality demands, and aesthetic preferences. They optimize system performance, reduce downtime, and enhance air cleanliness, tailored exactly to your requirements.

Q: How does the filter's construction contribute to its durability and efficiency?

A: Constructed with a galvanized iron frame and synthetic non-woven media, reinforced by expanded metal or aluminium mesh, the filter resists deformation, maintains its structure, and delivers consistent filtration efficiency even under challenging conditions.
